Accu-Scope 3076 4K LED Digital Stereo Microscope 0.67x - 4.5x
Accu-Scope 3076 4K LED Digital Stereo Microscope 0.67x - 4.5x
|
SKU: 3076-LED-4KS
- HDMI / USB Output Camera - With or Without Screen
- 6.7x - 45x Zoom Range
- 22mm FOV Eyepieces
- Full Size Stand With LED Illumination
- 5 Year Mechanical & Electrical Warranty
Couldn't load pickup availability
Description

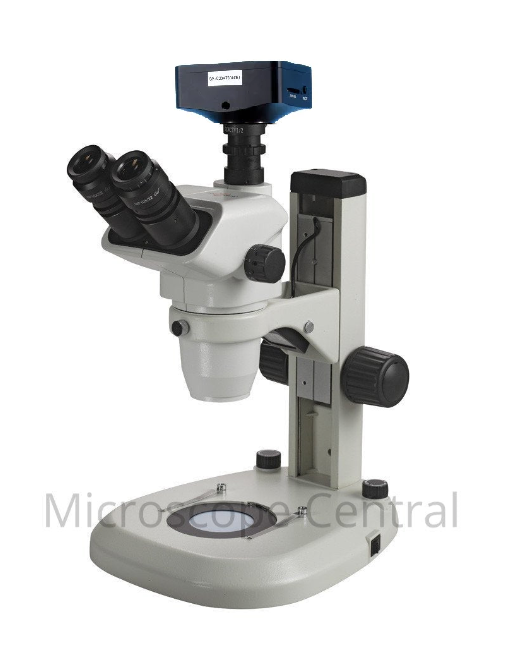

The Accu-Scope 3076 4K stereo microscope on LED stand is a popular, well rounded microscope that provides excellent flatness and depth of field suitable for industrial, OEM, and classroom applications. The large side mounted zoom knob allows you to easily zoom through its 0.67x - 4.5x zoom range. With the included WF 10x/22mm field of view eyepieces this system delivers an overall zoom range of 6.7x - 45x magnification. Optional higher magnification eyepieces are available, as well as auxiliary lenses to increase / decrease field of view and magnification. The binocular, or trinocular viewing head is inclined at an ergonomic 45 degree angle. The LED stand is a compact, yet robust stand offering transmitted and reflected variable intensity LED illumination. This reliable, high quality stereo microscope will be an asset to your everyday work.

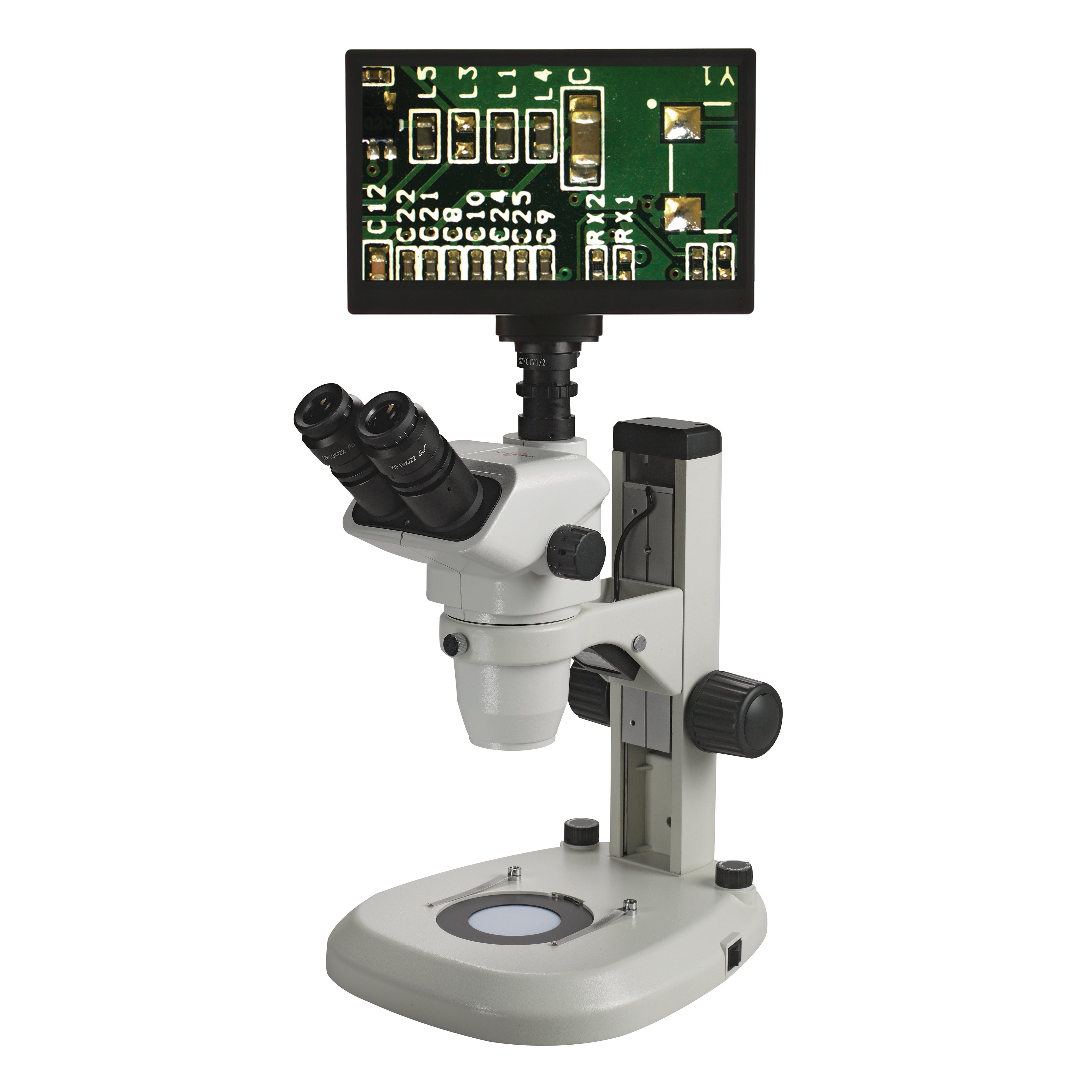

The View4K is a powerful new microscope camera that produces high-definition images of amazing clarity and can output HDMI (4K Monitor NOT required), USB, or WiFi. You can choose the option to have an 13.3" HD screen that mounts directly to the front of the camera for an all-in-one streamlined digital solution, use any of the other output methods listed below.
HDMI Mode: On-board software allows you to fully control the camera's settings / built-in features with the included mouse. Adjust the exposure, brightness, and more. The software also allows for on-screen measurement, picture in picture, image comparison, video / image replay, and more. In HDMI mode you can capture images / videos to the included USB stick to transfer to your computer.
USB Mode: Connect to your computer via USB 3.0 cable and use the free advanced software to view, capture, and process. The feature rich software includes measurements, time-lapse, stitching, extended depth of focus, and more.
WiFi Mode: Wireless connection to an android, iOS device, or computer. A FREE app can be downloaded for android or iOS device use. Output WiFi to use the included computer software.
| Microscope Specifications: | |
|---|---|
| Head: | Trinocular viewing head, inclined 45°, rotatable 360° w/ c-mount adapter |
| Eyepieces: | WF10x/22mm eyepieces w/built in diopter adjustments & eyeguards |
| Magnification: | 0.67x to 4.5x zoom range (6.7x -45x with 10x eyepieces) |
| Stand: | Variable 5 Watt LED incident and transmitted illumination with frosted class stage plate and black/white plate |
| Accessories: | Dust Cover & Manual |
| Warranty: | 5 Year Mechanical 5 Year Electrical |
| Camera Specifications: | |
|---|---|
| Resolution (Live): | 4K (3840 x 2160) |
| Mega Pixels: | 8.0 M.P. |
| Sensor: | 1/1.8" Sony IMX678- CMOS |
| Pixel Size: | 2.0 x 2.0μ |
| Sensitivity: | 1364mv with 1/30s |
| Shutter: | Rolling |
| Frame Rate: |
HDMI 60 FPS @ (3840 x 2160) HDMI 60 FPS @ (1920 x 1080) WiFi, GE 30 FPS @ (3840 x 2160) |
| Image & Video Capture: |
HDMI - Capture to USB Stick PC - Capture w/ software WiFi - Capture w/ APP |
| Exposure Time: | 0.001 sec - 10.0 sec |
| Output Modes: | HDMI, WiFi, USB |
| HDMI Compatibility: | Any HDMI input monitor, projector, TV (4K Not Required) |
|
Computer Compatibility: |
Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed |
| PC Software: |
Windows: Live video preview Mac: Live video preview |
| Warranty: | 1 year |
