Amscope 3.5X-90X Articulating Zoom Microscope w Fluorescent Light + 5MP Digital Camera

Amscope 3.5X-90X Articulating Zoom Microscope w Fluorescent Light + 5MP Digital Camera

|

SKU: SM-6TZ-FRL-5M

Regular price $969.99
Regular price $1,209.99 Sale price $969.99
Sale Sold out
Quote Request
Amscope 3.5X-90X Articulating Zoom Microscope w Fluorescent Light + 5MP Digital Camera
Got Questions? Why Choose Us? View full details

Description

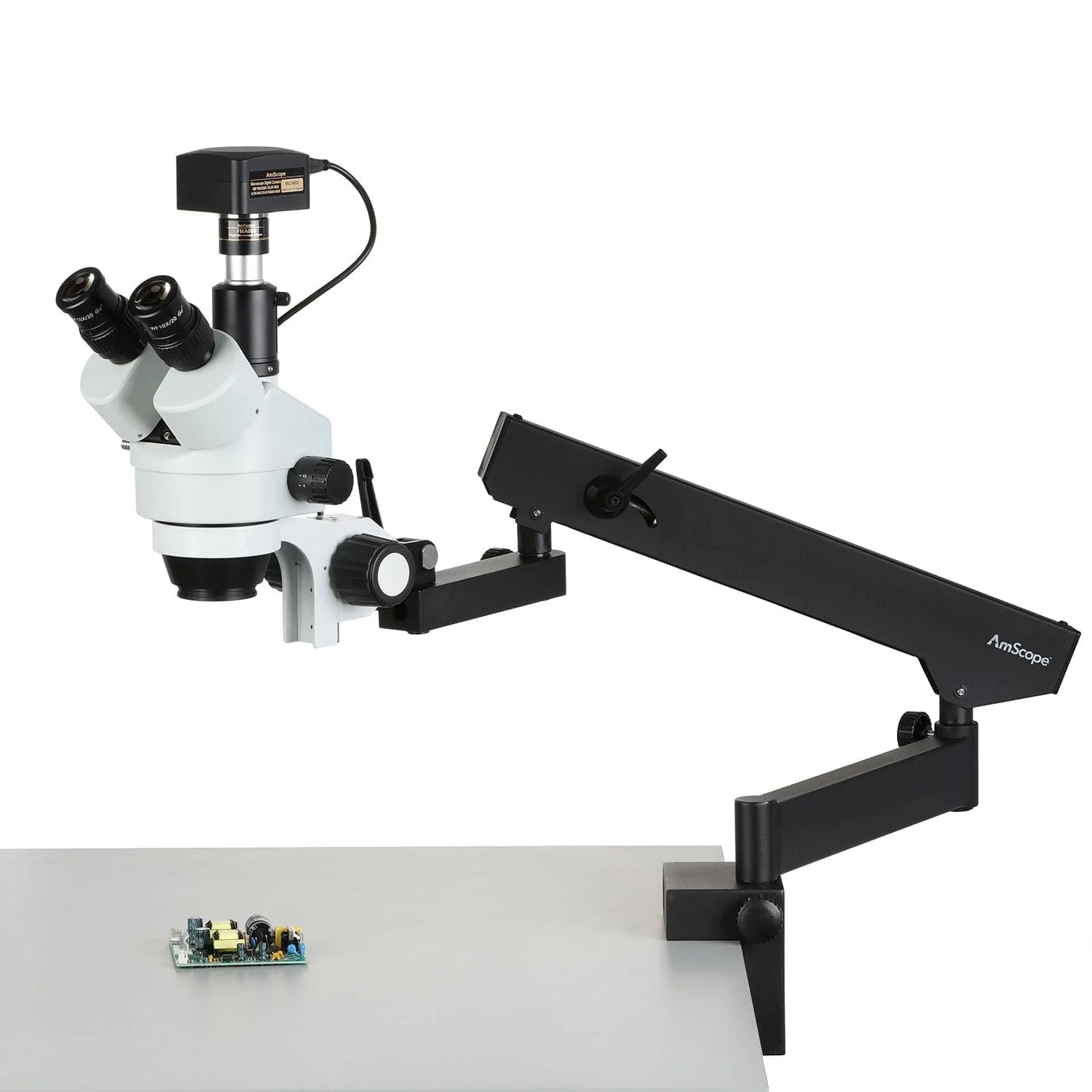

This is a great turnkey package of a 3.5X-90X articulating stereo microscope with a fluorescent ring light and a 5MP high resolution digital image system. This package includes a 3.5X-90X trinocular zoom microscope with an articulating arm, a fluorescent ring light, and a 5MP high resolution USB2.0 digital camera. It offers sharp, crystal clear images and great flexibility. It is a perfect inspection microscopy system. With 30mm super widefield high-eyepoint 10X eyepieces and two Barlow lenses (0.5X and 2.0X), the microscope gives 26:1 large zoom magnification range and 8" (200mm) large working distance. The fluorescent light provides bright, even and cool illumination.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This stereo microscopy system is great for both industrial and biological lab applications. It is an ideal instrument for research lab technicians, gemologists, and anyone in semiconductor and electronic industries.

Features:

  • A great microscopy turnkey package with real time high resolution image system
  • Trinocular zoom microscope with high quality USB2.0 color digital camera
  • 3.5X-90X large zoom magnification range
  • Sharp stereo erect images over a wide field view
  • Crystal clear original true color
  • 8" (200mm) large working distance
  • 45 degree inclined trinocular head with SUPER widefield high-eyepoint eyepieces
  • 30mm SUPER widefield 10X eyepieces
  • Adjustable interpupillary distance
  • Both ocular-tubes with adjustable diopter
  • High-eyepoint design for comfortable observation, especially for glass wearers
  • High resolution with great flatness and contrast
  • Accurate alignment ensuring a fatigue-free long time view
  • Full optical glass elements
  • Precise ground glass lens
  • Versatile articulating stand with clamp covering extremely large working area
  • Heavy duty articulating arm stand with clamp finished with stain resistant enamel
  • All metal mechanical components

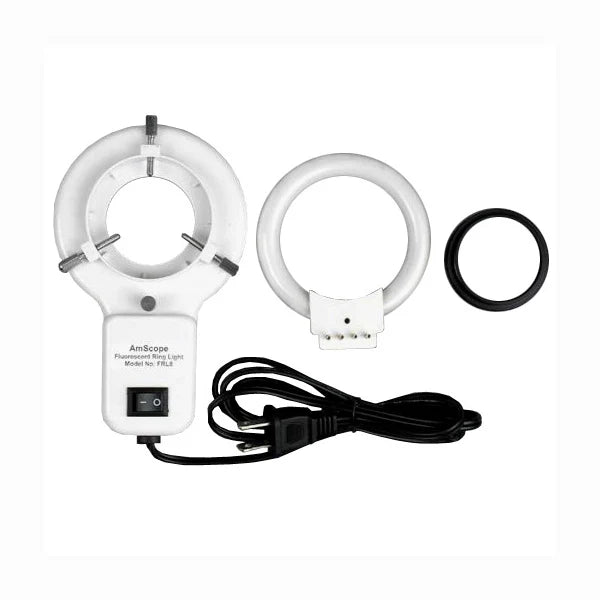

  • Fluorescent ring light included
  • Rubber eye guards included
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty

Specifications:

  • Head: 45 degree inclined 360 degree rotatable trinocular
  • Eyepieces: 30mm super widefield high-eyepoint 10X
  • Barlow Lens: 0.5X and 2.0X super widefield
  • Objective: 0.7-4.5X
  • Zoom Range: 26:1
  • Working Distance: 8" (200mm)
  • Field of View: 2-1/2" (65mm) super widefield view
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
  • Stand: heavy duty articulating arm stand with clamp
  • Illumination: 8W 110V (220V version available) fluorescent ring light
  • Accessories: eye-guards



Camera Specifications:

  • Sensor Type: CMOS
  • Sensor Size: 5.7mm x 4.28mm
  • Pixel Size: 2.2
  • Resolution: 5M (2592 x 1944)
  • Frame Rate: 5fps @ 2592x1944  18fps @ 1280x960  60fps @ 640x480
  • Sensitivity: 0.53V/Lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

  • One Trinocular Zoom Microscope Head
  • One Pair of Super Widefield High-eyepoint 10X Eyepieces
  • One 0.5X Super Widefield Barlow Lens
  • One 2.0X Super Widefield Barlow Lens
  • One Articulating Arm with Clamp
  • One Focusing Rack
  • One Fluorescent Ring Light
  • One Ring Light Adapter
  • One Pair of Eye-guards
  • User's Manual Download
  • One 5MP USB2.0 Digital Camera with Reduction Lens
  • One 6' (1.8m) USB Cable
  • One CD with Software, Driver and User's Instructions
  • Shipping Weight: 30 lbs



ACCU-SCOPE's new 3078 Zoom Stereo Microscope Series incorporates a newly designed optical system which provides sharp, high resolution, 3-dimensional views of image samples.  The 3078 Series' ergonomic, modular design makes it ideal for university, industrial and OEM applications. - See more at: http://accu-scope.com/products/3078-zoom-stereo-microscope-series/#
